Economy Plus #80 Cottered Roller Chain - 10ft Box

#80 Cottered Roller Chain

Alternative Views:

Our Price: $107.60

Availability: Ships Within 24 Hours
Product Code: ECO-COTTERED-80RC-10FT

Qty:

Description

Technical Specs

Economy Plus #80 Cottered Roller Chain

Economy Plus #80 cottered roller chain is a quality low cost ANSI standard roller chain. This #80 cottered roller chain features heat-treated components including the pins and side plates, the tensile strength of this chain is 14,500lbs, and the chain features solid rollers. The manufacturing process for this chain has made it have high strengths and increase fatigue. Economy Plus #80 cottered roller chain is commonly supplied in 10ft boxes but is also available on 50ft reels, 100ft reels, and as custom lengths per request. This chain uses cotter pins instead of rivets, the benefit of this is that the chain is easier to install sections and eliminate the need of cutting the rivet pins. USA Roller Chain and Sprockets also offers a full line of attachments for this chain and a full line of high quality sprockets! For more information or if you need a custom length please contact us.

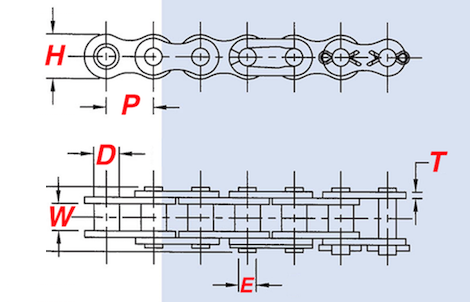

Dimensions:

Chain Size: #80 Cottered Roller Chain
Tensile Strength: 14,500lbs
Pitch (P): 1.000"
Roller Width (W): 0.625"
Roller Diameter (R): 0.625"
Plate Height (H): 0.935"
Plate Thickness (T): 0.125"
Pin Diameter (D): 0.312"

Phone: (407) 347-3519
Email: sales@usarollerchain.com

USA Roller Chain

Features

- Size: #80 Cottered Roller Chain
- Ultimate Strength: 14,500lbs
- Heat Treated For Increased Fatigue
- Features Solid Rollers For Increased Performance
